32135 Cylindrical Battery Cell Case with Cap | 32135 Aluminum Case with Cap

The shell of the 32135 cylindrical battery cell case with cap is an aluminum case, which are the necessary components for assembling the 32135 cells.

  • Model:

    WA-CCC-32135
  • Case material:

    Aluminum (Al 3003 H14)
  • Case height:

    134.80±0.10mm
  • Case inner diameter:

    32.44±0.05mm
  • Case outer diameter:

    33.20±0.10mm
  • Case thickness:

    0.38±0.05mm
  • Case weight:

    14.41±0.8g
  • Product Detail

32135 Aluminum Case with Cap

32135 Cylindrical Battery Cell Case with Cap


Product overview:

These 32135 cylindrical battery cell cases are made of aluminum through stamping process. It has a beautiful appearance, clean and tidy, and the size deviation is very small.


Scope of application:

The 32135 cylindrical battery cell cases and caps are suitable for the assembly of 32135 cells.


Features:

1) The material of the 32135 cylindrical cell case is aluminum, and the grade is Al 3003 H14.

2) Meet the requirements of ROSH2.0.

3) The pressure resistance of the 32135 aluminum case is greater than 1.6MPa.

4) The salt spray test meets the requirements of GB/T 2423.17-2008.

5) Beautiful finish with less scratches. The specific quality control standard is that the depth of scratches does not exceed 0.1mm, the vertical length of scratches does not exceed 5mm, the horizontal length of scratches does not exceed 2mm, and the total number of scratches does not exceed 5.

6) The edge burr of the 32135 cell case port is less than 0.1mm and cannot fall off.

7) The metal shavings particles on the surface of the cylindrical battery shell have a diameter of ≤0.3mm and a quantity of ≤5.

8) The diameter of non-metal shavings particles on the surface of the cylindrical battery case is ≤0.4mm, and the number is ≤10.


Technical specifications

Product name

32135 Cylindrical Battery Cell Case with Cap

Product model

WA-CCC-32135

Case material

Aluminum (Al 3003 H14)

Case height

φ134.80±0.10mm

Inner diameter of the case

φ32.44±0.05mm

Outer diameter of the case

φ33.20±0.10mm

Case thickness

0.38±0.05mm

Case weight

14.41±0.8g



32135 Cylindrical Battery Cell Case with Cap

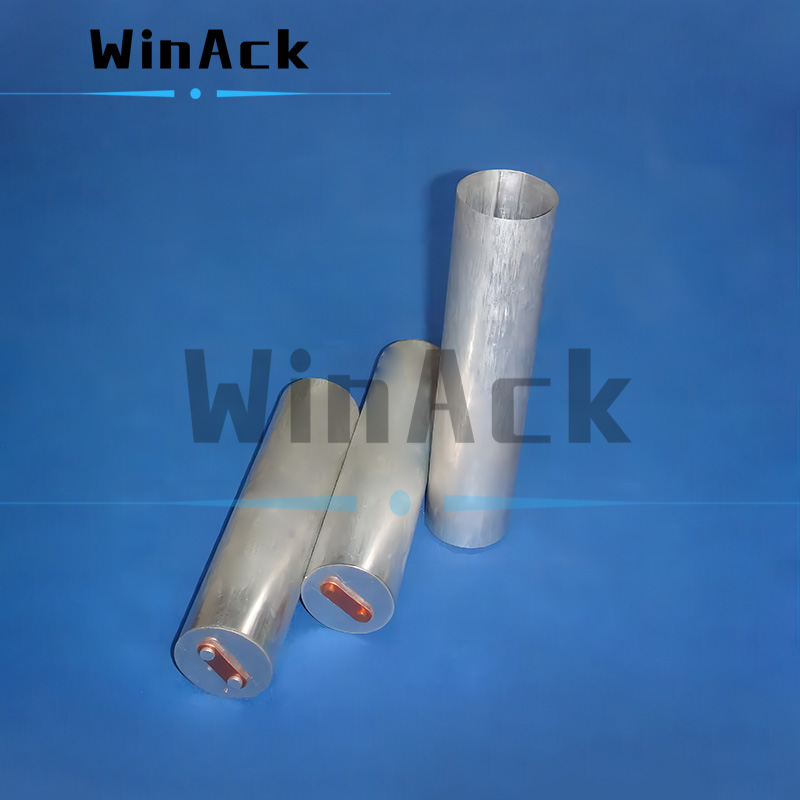

Image 1.   32135 Cylindrical Battery Cell Case with Cap

Dimensions of 32135 cell case

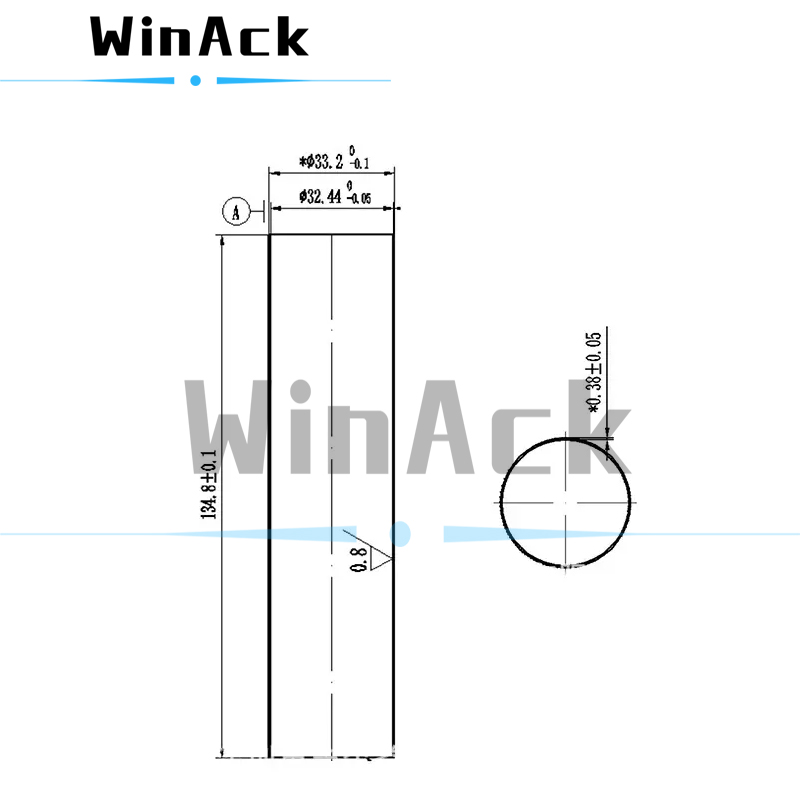

Image 2.   Dimensions of 32135 cell case

32135 Cell

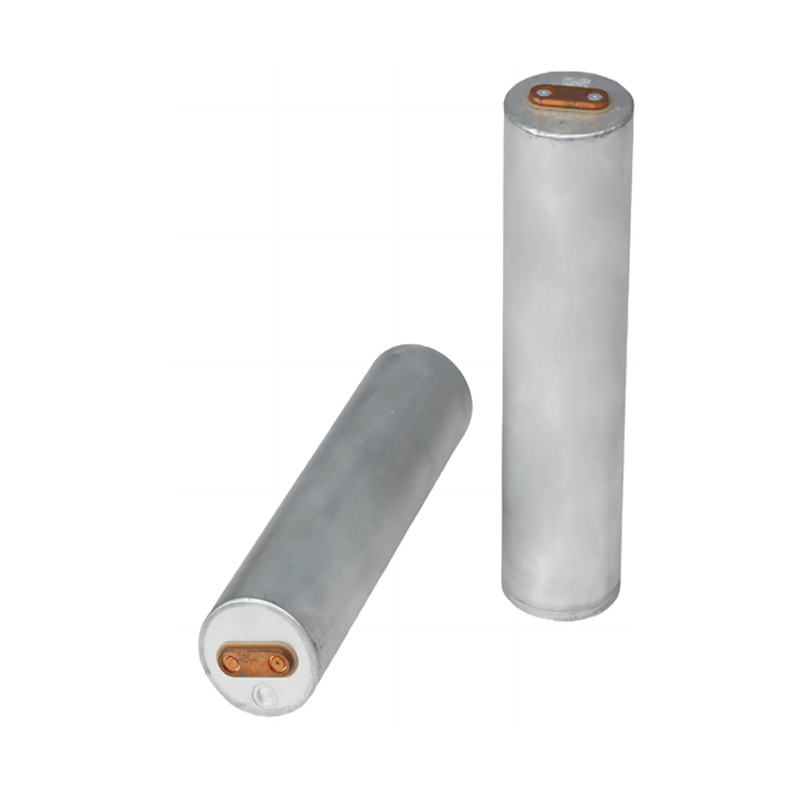

Image 3.   32135 Cell
