WinAck is a professional battery cycle tester manufacturer and battery tester machine supplier. The battery tester has high test accuracy, good stability, and the test software is easy to use.
Model:
WA-BTS-5V30ATest channels:
8CH/SET (Customizable)Voltage range/CH:
1V~5V (Customizable)Voltage accuracy:
±0.03% FSCurrent range/CH:
30mA~30A (Customizable)Current accuracy:
±0.03% FSWarranty:
One year warranty with lifetime supportProduct Detail

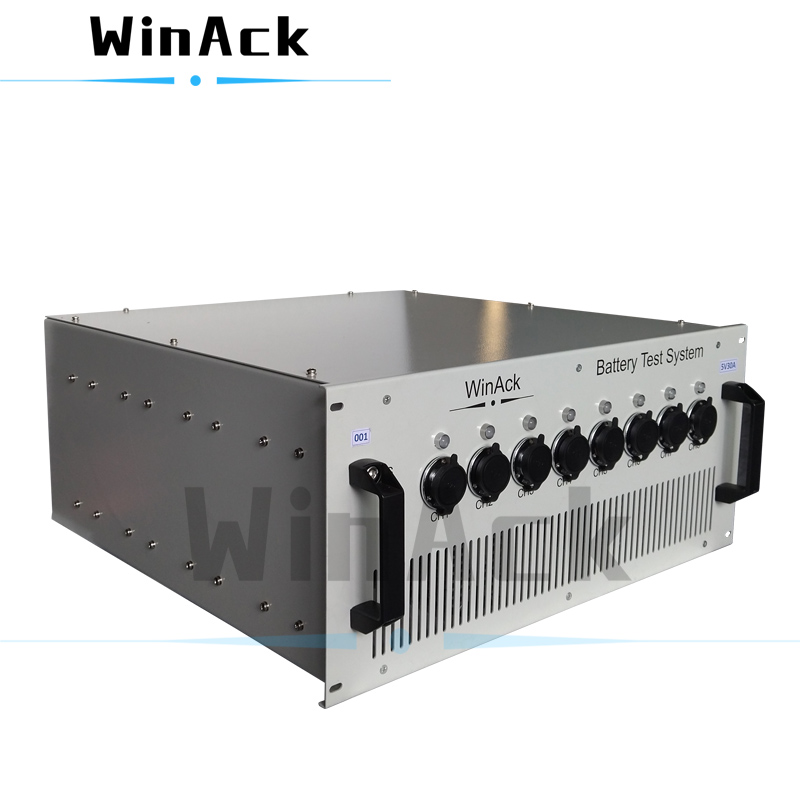

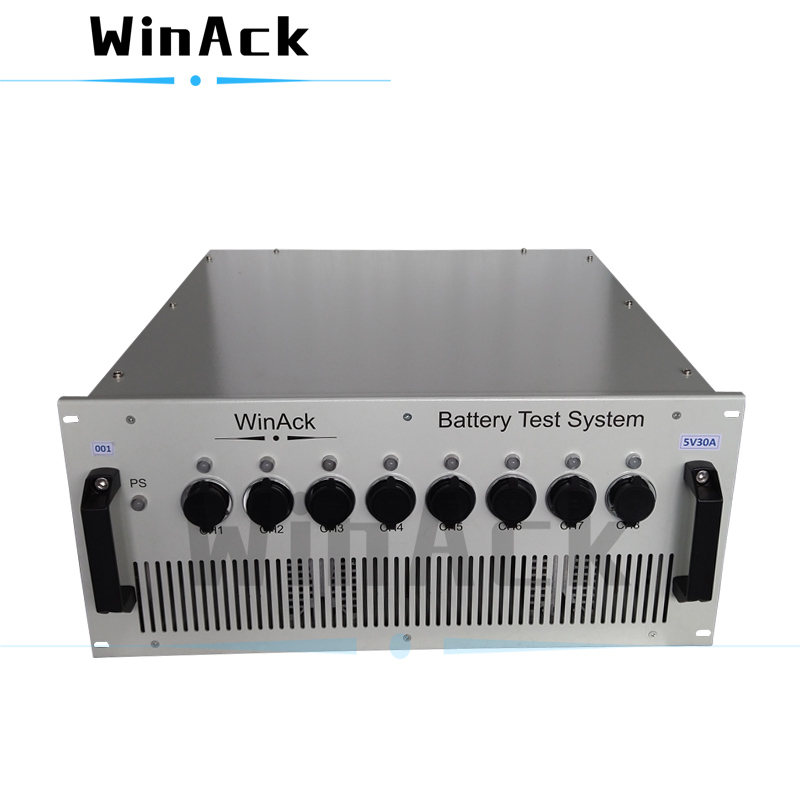

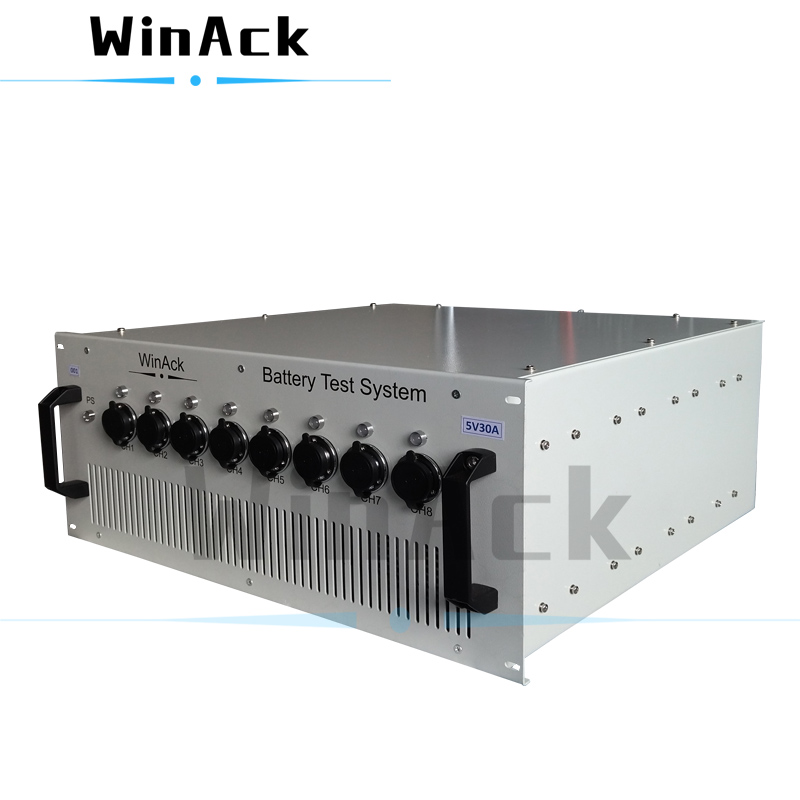

Battery Cycle Tester | Battery Tester Machine
Product overview:
The battery cycle tester is a professional battery tester machine, suitable for battery charge and discharge testing, and is widely used in battery manufacturers and battery research and development laboratories.
|
Battery Cycle Tester (Both voltage and current can be customized) |
||
|
Product model |
Voltage range / CH |
Current range / CH |
|
WA-BTS-5V12A |
0V~5V |
12mA~12A |
|
WA-BTS-5V20A |
0V~5V |
20mA~20A |
|
WA-BTS-5V30A |
0V~5V |
30mA~30A |
|
WA-BTS-7V12A |
0V~7V |
12mA~12A |
|
WA-BTS-7V20A |
0V~7V |
20mA~20A |
|
WA-BTS-7V30A |
0V~7V |
30mA~30A |
|
For more product models, please click "Battery Test Systems" to view or contact us. |
||
Scope of application:
The battery cycle tester is suitable for performance testing and cycle life aging testing of various batteries, such as lithium-ion batteries, polymer batteries, supercapacitors, lead-acid batteries, nickel-cadmium batteries, nickel-hydrogen batteries, etc.
Features:
1) Independent control for each channel
The battery cycle tester is a professional battery tester, each channel is independent, can be independently programmed, and can be independently controlled.
2) High test accuracy
The battery cycle tester has high test accuracy, voltage accuracy: ±0.03% FS, current accuracy: ±0.03% FS.
3) The programming of test steps is simple
The software uses the full-screen table format work step programming interface, which is simple and easy to use.
4) Support multiple test steps
The battery cycle tester supports constant current charging, constant current discharge, constant voltage charging, constant power charging, rate charging, rate discharging, constant resistance discharging and standing and other test steps.
5) Support multiple test end conditions
The test end conditions support more than 20 settings such as time, voltage, current, capacity, and -∆V.
6) Powerful safety protection function
The battery cycle tester has protection methods such as over-voltage, under-voltage, over-charge current, over-discharge current, over-charge capacity, and over-discharge capacity, etc.
7) With power-down protection function
During the battery test process, any time there is a power failure in the power supply system, the battery cycle tester can guarantee that no data will be lost. After power on again, the battery tester has a self-recovery function, which can seamlessly connect from the place where it was powered off last time and continue the test process.
8) Powerful test data processing function
The software has powerful test data and graphics processing functions.
Technical specifications
|
Product name |
Battery Test Systems |
|
|
Product model |
WA-BTS-5V30A |
|
|
Number of channels / Set |
8CH (Customizable) |
|
|
Power supply |
Single-phase AC220V±10% / 50Hz (Customizable) |
|
|
Input active power |
1220W |
|
|
Input Resistance |
≥1GΩ |
|
|
Resolution |
AD：16bit; DA：16bit |
|
|
Voltage |
Voltage Range / Channel |
1V~5V (Customizable) |
|
Discharge Min Voltage |
1V |
|
|
Accuracy |
± 0.03% of FS |
|
|
Stability |
± 0.03% of FS |
|
|
Current |
Current Range / Channel |
30mA~30A (Customizable) |
|
Accuracy |
± 0.03% of FS |
|
|
Constant Voltage Cut-off Current |
500μA |
|
|
Stability |
± 0.03% of FS |
|
|
Power |
Output Power / Channel |
150W |
|
Stability |
±0.1% of FS |
|
|
Time |
Current Response Time (10%FS~90%FS) |
＜200μs |
|
Step Time Range |
00:01~4800:00:00 |
|
|
Supported time format |
00：00：00：00(h、min、s、ms) |
|
|
Data Recording |
Recording Condition |
The minimum time interval：100ms |
|
The minimum voltage interval：2mV |
||
|
The minimum current interval： 100μA |
||
|
Record Frequency |
5Hz |
|
|
Charge |
Charge Mode |
Constant Current Charge, Constant Voltage Charge, Rate Charge, etc. |
|
End Condition |
Voltage, Current, Relative Time, Capacity, -ΔV, etc. |
|
|
Discharge |
Discharge Mode |
Constant Current Discharge, Constant Voltage Discharge, Rate Discharge, etc. |
|
End Condition |
Voltage, Current, Relative Time, Capacity, etc. |
|
|
Cycle |
Loop Measure Range |
1~99999 times |
|
Max Steps Per Loop |
400 |
|
|
Nested Loop |
Nested loop Function，Max Support 3 Layers |
|
|
Protection |
Software Protection |
Power down data protection, automatic seamless start after power on. |
|
Setting Protection Condition，Setting Parameter： Upper limit of Voltage、Lower limit of Voltage、Upper limit of Current、Lower limit of Current、Upper limit of Capacity、Temperature、Delay Time |
||
|
Channel Features |
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure |
|
|
Channel Control Mode |
Independent Control |
|
|
Voltage and current test collection method |
4-wire connecting |
|
|
Noisy |
<45dB |
|
|
Server operating system |
Win 7, Win 8, Win 10, etc. |
|
|
Data Output |
EXCEL 2003, EXCEL 2010, TXT |
|
|
Leakage current |
0.005μA |
|
|
communication method |
RS232 |
|
|
Communication Interface |
Aviation connector |
|
|
Working Temperature Range |
0℃~40℃ |
|
|
Storage Temperature Range |
-10℃~50℃ |
|
|
Working Environment Relative Humidity Range |
≤70% RH |
|
|
Storage Environment Relative Humidity Range |
≤80% RH |
|
|
Size(W*D*H) |
600*620*260mm |
|
|
Weight |
48kg |
|
