WinAck Group, as a professional battery cell and pack cycler manufacturer, has several series of battery testing system ranging from small single cells to big battery packs.
Among them, DB-series dissipative battery testing system is a popular and advanced battery cell and pack cycler with high testing accuracy, rich charging and discharging modes, independent control of each channel, powerful protection functions, user-friendly operation software in English, easy to use and good stability.
Table 1. Model List_WinAck_DB-series Dissipative Battery Cell and Pack Cycler
|
Product Model |
DC Voltage Range / CH |
DC Current Range / CH |
Channels/Cabinet |
|
WA-BTS-DB5V1mA8CH40mW |
5V |
±1mA |
8CH |
|
WA-BTS-DB5V10mA8CH400mW |
5V |
±10mA |
8CH |
|
WA-BTS-DB5V20mA8CH800mW |
5V |
±20mA |
8CH |
|
WA-BTS-DB5V50mA8CH2W |
5V |
±50mA |
8CH |
|
WA-BTS-DB5V100mA8CH4W |
5V |
±100mA |
8CH |
|
WA-BTS-DB5V200mA8CH8W |
5V |
±200mA |
8CH |
|
WA-BTS-DB5V300mA8CH12W |
5V |
±300mA |
8CH |
|
WA-BTS-DB5V500mA8CH20W |
5V |
±500mA |
8CH |
|
WA-BTS-DB5V1A8CH40W |
5V |
±1A |
8CH |
|
WA-BTS-DB5V2A8CH80W |
5V |
±2A |
8CH |
|
WA-BTS-DB5V3A8CH120W |
5V |
±3A |
8CH |
|
WA-BTS-DB5V4A8CH160W |
5V |
±4A |
8CH |
|
WA-BTS-DB5V6A8CH240W |
5V |
±6A |
8CH |
|
WA-BTS-DB5V10A8CH400W |
5V |
±10A |
8CH |
|
5V |
±12A |
8CH |
|
|
WA-BTS-DB5V15A8CH600W |
5V |
±15A |
8CH |
|
WA-BTS-DB5V20A8CH800W |
5V |
±20A |
8CH |
|
WA-BTS-DB5V25A8CH1000W |
5V |
±25A |
8CH |
|
WA-BTS-DB5V30A8CH1200W |
5V |
±30A |
8CH |
|
WA-BTS-DB5V50A8CH2000W |
5V |
±50A |
8CH |
|
WA-BTS-DB5V60A1CH300W |
5V |
±60A |
1CH |
|
WA-BTS-DB5V60A8CH2400W |
5V |
±60A |
8CH |
|
WA-BTS-DB5V100A4CH2000W |
5V |
±100A |
4CH |
|
WA-BTS-DB5V120A4CH2400W |
5V |
±120A |
4CH |
|
WA-BTS-DB5V200A2CH2000W |
5V |
±200A |
2CH |
|
WA-BTS-DB5V300A1CH1500W |
5V |
±300A |
1CH |
|
WA-BTS-DB5V500A1CH2500W |
5V |
±500A |
1CH |
|
WA-BTS-DB6V2A8CH96W |
6V |
±2A |
8CH |
|
WA-BTS-DB6V3A8CH144W |
6V |
±3A |
8CH |
|
WA-BTS-DB6V5A8CH240W |
6V |
±5A |
8CH |
|
WA-BTS-DB10V3A8CH240W |
10V |
±3A |
8CH |
|
WA-BTS-DB10V5A8CH400W |
10V |
±5A |
8CH |
|
WA-BTS-DB10V6A8CH480W |
10V |
±6A |
8CH |
|
WA-BTS-DB10V10A8CH800W |
10V |
±10A |
8CH |
|
WA-BTS-DB10V15A8CH1200W |
10V |
±15A |
8CH |
|
WA-BTS-DB10V20A8CH1600W |
10V |
±20A |
8CH |
|
WA-BTS-DB10V30A1CH300W |
10V |
±30A |
1CH |
|
WA-BTS-DB10V30A8CH2400W |
10V |
±30A |
8CH |
|
WA-BTS-DB10V60A4CH2400W |
10V |
±60A |
4CH |
|
WA-BTS-DB10V100A2CH2000W |
10V |
±100A |
2CH |
|
WA-BTS-DB10V120A2CH2400W |
10V |
±120A |
2CH |
|
WA-BTS-DB12V5A8CH480W |
12V |
±5A |
8CH |
|
WA-BTS-DB15V3A8CH360W |
15V |
±3A |
8CH |
|
WA-BTS-DB15V5A8CH600W |
15V |
±5A |
8CH |
|
WA-BTS-DB15V6A8CH720W |
15V |
±6A |
8CH |
|
WA-BTS-DB15V20A1CH300W |
15V |
±20A |
1CH |
|
WA-BTS-DB15V20A8CH2400W |
15V |
±20A |
8CH |
|
WA-BTS-DB15V40A4CH2400W |
15V |
±40A |
4CH |
|
WA-BTS-DB15V60A2CH1800W |
15V |
±60A |
2CH |
|
WA-BTS-DB15V80A2CH2400W |
15V |
±80A |
2CH |
|
WA-BTS-DB20V3A8CH480W |
20V |
±3A |
8CH |
|
WA-BTS-DB20V5A8CH800W |
20V |
±5A |
8CH |
|
WA-BTS-DB20V6A8CH960W |
20V |
±6A |
8CH |
|
WA-BTS-DB20V10A8CH1600W |
20V |
±10A |
8CH |
|
WA-BTS-DB20V15A1CH300W |
20V |
±15A |
1CH |
|
WA-BTS-DB20V15A8CH2400W |
20V |
±15A |
8CH |
|
WA-BTS-DB20V30A4CH2400W |
20V |
±30A |
4CH |
|
WA-BTS-DB20V60A2CH2400W |
20V |
±60A |
2CH |
|
WA-BTS-DB25V3A8CH600W |
25V |
±3A |
8CH |
|
WA-BTS-DB25V6A8CH1200W |
25V |
±6A |
8CH |
|
WA-BTS-DB30V3A8CH720W |
30V |
±3A |
8CH |
|
WA-BTS-DB30V6A8CH1440W |
30V |
±6A |
8CH |
|
WA-BTS-DB30V10A1CH300W |
30V |
±10A |
1CH |
|
WA-BTS-DB30V10A8CH2400W |
30V |
±10A |
8CH |
|
WA-BTS-DB30V20A4CH2400W |
30V |
±20A |
4CH |
|
WA-BTS-DB30V40A2CH2400W |
30V |
±40A |
2CH |
|
WA-BTS-DB60V5A8CH2400W |
60V |
±5A |
8CH |
|
WA-BTS-DB60V10A4CH2400W |
60V |
±10A |
4CH |
|
WA-BTS-DB60V20A2CH2400W |
60V |
±20A |
2CH |
|
WA-BTS-DB100V6A4CH2400W |
100V |
±6A |
4CH |
|
WA-BTS-DB100V12A2CH2400W |
100V |
±12A |
2CH |
|
Kindly reminder: a) If there are any adjustments or modifications, you'd like to make to the voltage range, current range, max. output power, test accuracy and recording frequency, etc.; or if you have any further questions or concerns, please don't hesitate to contact us. We are more than happy to assist you in any way we can. We value your feedback, and our team is committed to providing the best solutions and service to you. b) The above are some of our product models, for more battery cell and pack cycler with other voltage ranges, current ranges and output power, please contact us for more details. c) The above models and parameters are for reference only, please refer to the latest technical specifications provided by us. |
|||

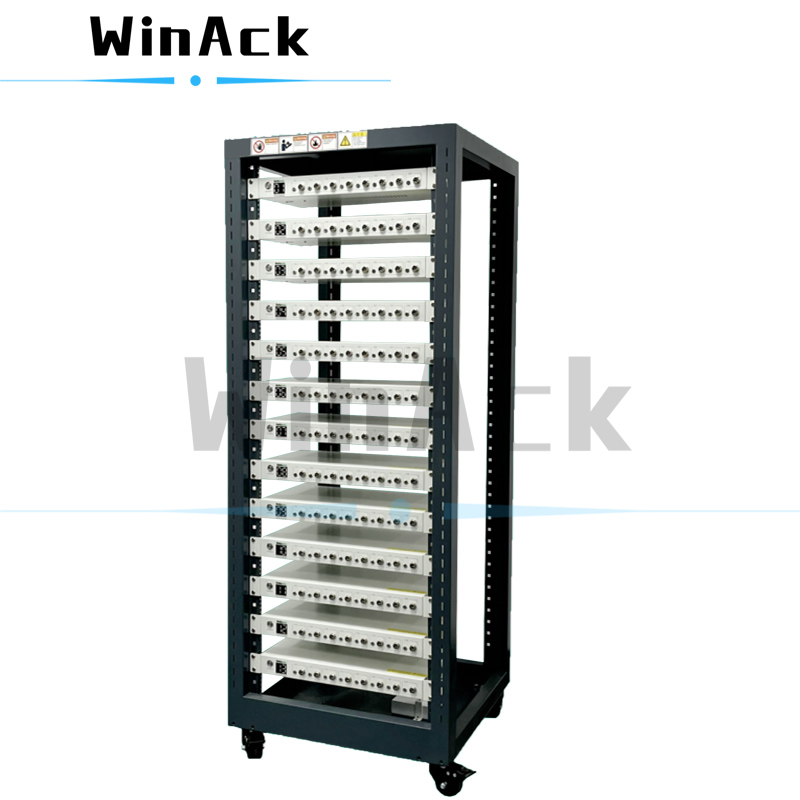

Figure 1. Battery Cell Cycler with Rack
Figure 2. Single-channel Battery Pack Cycler

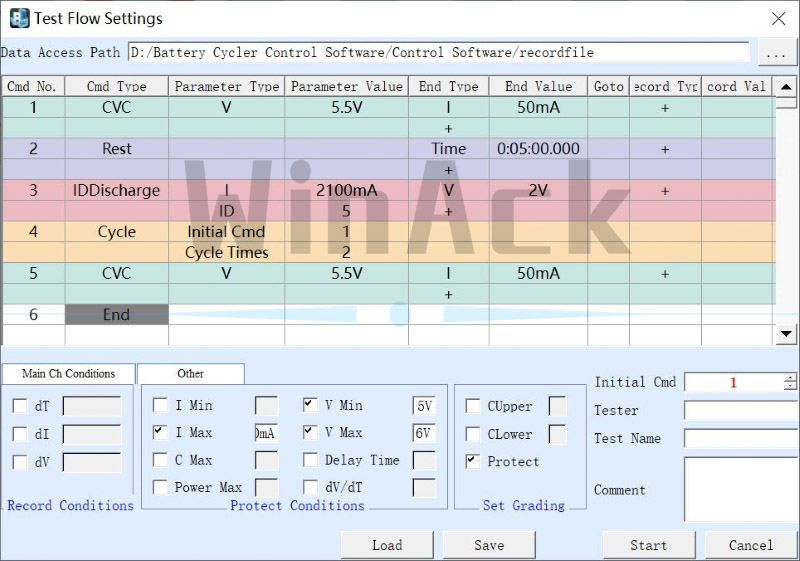

Figure 3. Test Process Settings of Battery Cell and Pack Cycler
WinAck Group can provide complete battery testing system solutions. Come by, contact us for a solution that can help you succeed. For better batteries, Win & Ack!
